Patented Training Mode™ reduces the power output by 50% for new or younger drivers. When they're ready, simply change profiles to unleash full-throttle action.
EZ-Set? one-button setup operates and programs just like other Traxxas speed controls
Three programmable drive profiles:
Sport Mode – Fwd / Brake / Rev
Race Mode – Fwd / Brake
Training Mode™– 50% Fwd / Brake / 50% Rev
Multi-color status LED
Two-stage thermal shutdown protection protects the BL-2s from overheating
Large aluminum heatsink dissipates heat
Built-in auxiliary fan output
Keyed motor connector
Adjustable body mounts for custom bodies
Speed control and receiver are securely fastened to chassis
Sealed, silicone-filled differentials
Low center of gravity (Low CG) chassis
Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
Red powder coated shock springs feature a responsive spring rate
Adjustable battery hold down
Full-time shaft driven 4-wheel drive
Aluminum center driveshaft
Rubber-sealed ball bearings
Black chrome wheels with lug nut detail
High-performance tires with long-wearing compound
Replica brake discs incorporate standard 12 mm wheel hexes

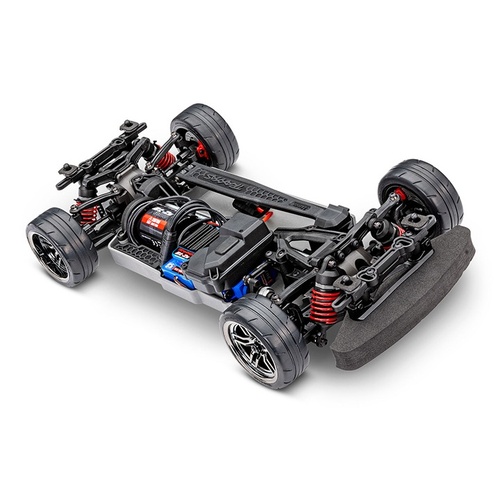

4-Tec 2.0 (83124-4) SPECS
Length:
14.94 inches (379 mm)
Front Track:
7.7 inches (196 mm)
Rear Track:
7.9 inches (200 mm)
Center Ground Clearance:
0.3 inches (9 mm)
Weight:
45.2 ounces (1.28 kg)
Height (overall):
2.43 inches (62 mm)
Wheelbase:
10.1 inches (256 mm)
Shock Length:
Short (front and rear)
Tire Diameter:
2.6 inches (66 mm)
Tire Width (front):
1.0 inches (26 mm)
Tire Width (rear):
1.2 inches (30 mm)
Wheel Diameter:
1.9 inches (48 mm)
Speed Control Type:
BL-2s™ brushless electronic speed control
Motor (electric):
BL-2s™ 3300 kV brushless
Overall Drive Ratio:
9.49
Differential Type:
Hardened steel bevel, sealed, limited slip
Gear Pitch:
48 pitch
Chassis Structure/Material:
Molded tub / Nylon composite
Drive System:
Shaft-driven, direct drive AWD
Steering:
Dual-bellcrank
Radio System:
TQ™ 2.4 GHz radio with 6519 3-channel micro receiver
Skill Level:
1
Top Speed:
40+ mph*
Battery Tray:
158 mm long / 46 mm wide / 23 or 26 mm high
Required Items (sold separately):
4 "AA" batteries (for transmitter), charger, 6 or 7-cell NiMH or 2-cell LiPo battery
*With optional gearing and 2s LiPo battery (items sold separately)
BL-2s (WATERPROOF) ESC SPECIFICATIONS
Input voltage:
6-7 Cells (7.2 to 8.4 volts)
Case Size:
39 mm x 59 mm x 31 mm
Weight:
3.07 ounces (87 g)
BEC Voltage:
6.0 volts
Low Voltage Detection (LVD):
2-stage indicators, switchable (on or off)
Thermal Protection:
2- stage thermal shutdown
Profile selection:
Sport Mode: 100% FWD, 100% brakes, 100% REV Race Mode: 100% FWD, 100% brakes, no REV Training Mode:* 50% FWD, 100% brakes, 50% REV
