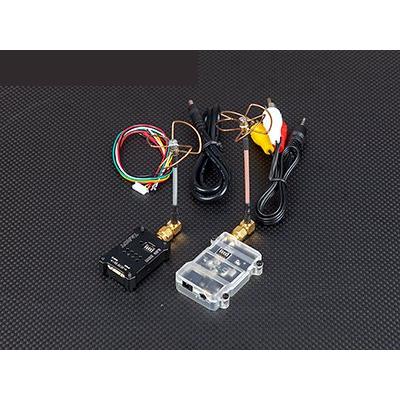

Tarot Racing FPV TX/RX Module Set

타롯사의 200~300 Racing용 FPV TX/RX 모듈세트.

클로버 안테나(TX/RX용)이 포함되어 있습니다.

원활한 방열을 위해 Metal Hard Case가 장착된 신형 버젼입니다.

본 상품은 구매대행 제품이며 관세, 부가세 등이 포함된 가격입니다.

연결 배선도는 아래를 참고 하세요.

<제품 이미지>

660) this.width=660;">

- TX 부분

660) this.width=660;">

- RX 부분

660) this.width=660;">

<제품 이미지>

660) this.width=660;">

Product Description:
Light weight, mini size.
Specific for long distance AV transmission.
Applicable to most 5.8G transmitters with 8-32 channels
1 Video output + 2 Audio output
Equipped with 5V1A power output; please confirm the current and voltage of relative device.

Note:
Install the antenna before connecting the power to avoid further damage.
Choose proper working frequency and tune the receiver to the same frequency. Please refer to the channel list.
Do not touch the surface of transmitter while operating. It is normal the surface is getting hot.
The input voltage range is between 7-26V (2-6S), do not overload the working voltage.
The output voltage is 5V1A. Please confirm the current and voltage of the camera
Applicable to DJI Phantom, 450-550 class Quad-copter, and Hex-copter

Specification:
TX5832-600M AV TX/RX x1Set


TX5832-600M Specifications:

Weight: 8.3G (without antenna)
Dimension: 21 x 33 x 7.5 mm
Working Frequency: 5645-5945MHz
Channel: 4 bands / 32 channel
5-DIP switch
Output Power: 27.5 dbm (300mw)
Input Voltage: DC 7-26V (2-6S)
Output Voltage: 5V 1A
Antenna Adaptor: RP-SMA 50Ω
Working Temperature: -10 ~ 60 degrees.
FM Frequency: FM
