Fishbonne Mavlink LED Navigation Light Board for Pixhawk - LED시스템

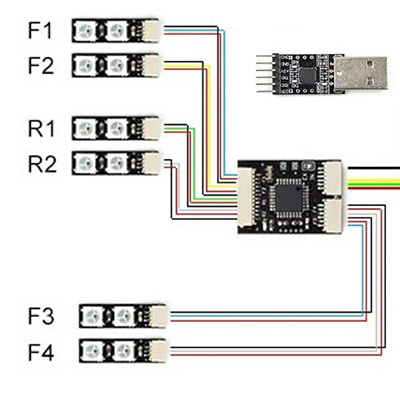

The Mavlink LED light control system consists of a controller, 6 high-bright RGB panels, a USB to serial module and a cable. This control system is used for flight control using Ardupilot and PX4 firmware. Pixhawk1, 2, 3, 4, 5, APM2.6 2.8, Pixracer, NAVIO2, PXFmini, etc. and compatible with Mavlink 1 and Mavlink 2 protocols.

Specification:
Brand name: Fishbonne
Item name: Mavlink LED Navigation Light
Compatible firmware: Ardupolit and PX4
Suitable for Pixhawk 2/3/4/5 APM2.6/2.8 Pixracer NAVIO2 PXFmini Flight Controller
Weight: 30g

Operating
1. The headlights F1 and F2 LED lights are used to indicate the direction of the nose of the aircraft. When the aircraft is not unlocked, it is in the breathing state. When unlocked, it will be bright and the color can be modified by computer software.
2. The tail R1 and R2 LED lights are used to indicate the aircraft status (GPS, remote control loss, primary low voltage, secondary low voltage, flight mode change), please refer to the table below.
3. F3 and F4 lights can display fixed colors, colors can be modified by computer software
All LED lights can be turned on/off via the auxiliary channel of the remote control (channel 6 to channel 16)

Package Included:
1 x Mavlink LED Navigation Light set
