상품상세설명

공전의 히트를 이어가고 있는 Graupner/SJ사의 6ch SUMD 전용 수신기.

GR-12S HoTT 수신기는 SUMD 방식으로만 동작이 되며, FPV 드론 등에 사용하는 플라이트 컨트롤러에 최적화된 소형 제품입니다.

※ v1.92 로 업데이트시 SBUS 출력 사용 가능합니다.

With the GRAUPNER HoTT 2.4 GHz technology, the receiver has a new hopping telemetry transmission high-frequency unit with state-of-the-art components and the latest software. A hardware antenna diversity system always switches to the better antenna signal and for transmission always uses the antenna that was last used for receiving. This ensures that the back channel data are always sent via the better-positioned antenna. Without additional sensor systems, the parameters receiver voltage and temperature, as well as signal strength are transmitted.
The use of up to 75 channels ensures extreme operating reliability and immunity to external interference.
The broad reception voltage range of 3.6 V - 8.4 V (functional to 2.5 V) ensures full functionality even when voltage fluctuates.
Two LEDs signal operating status.
The sizes and weights have been reduced.
Receiver input sensitivity and thus the range have been increased further.
Servo connections in the front panel.
Failsafe, hold, OFF, and standard (channel 1 failsafe; all others hold) programmable.

Important Note:

If your model is fitted with two or more receivers, it is absolutely essential that you do not carry out programming work e.g. with the Smart-Box during a flight, as this alter the settings in all connected receivers and this can lead to incorrect settings; in the worst case this could result in the model crashing! For this reason always carry out programming on the ground, and make sure that only the programmable receiver is powered on.



Specification

- Dimensions (LxWxH) : 25 x 18 x 6mm

- Frequency : 2400 ... 2483.5MHz

- Modulation : 2.4 GHz FHSS

- All-up weight, approx. : 7g

- Range approx. : 1000m

- Temperature range : - 15...+70°C

- Aerial length : 1 x Draht 150 (Antenne 30)mm

- Operating voltage : (2,5) 3,6 ... 8,4V

- Charging rate : 70mA

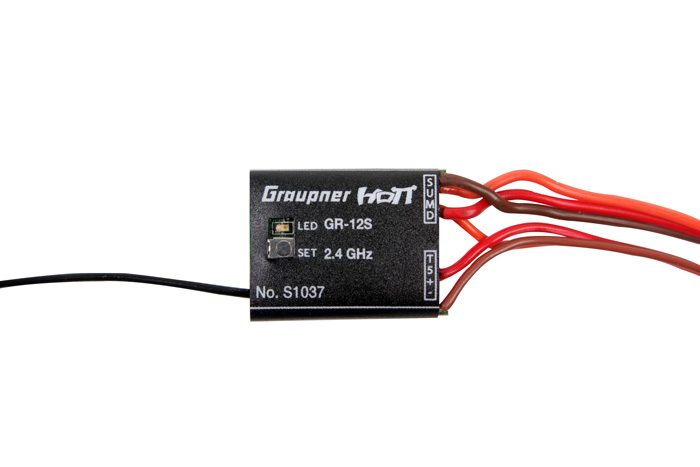

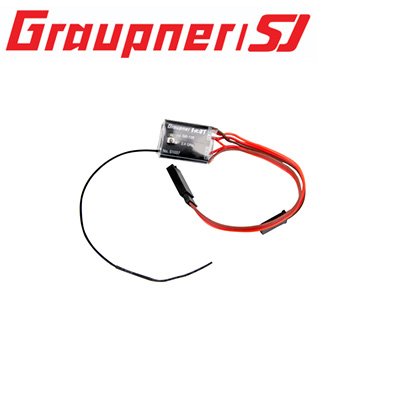

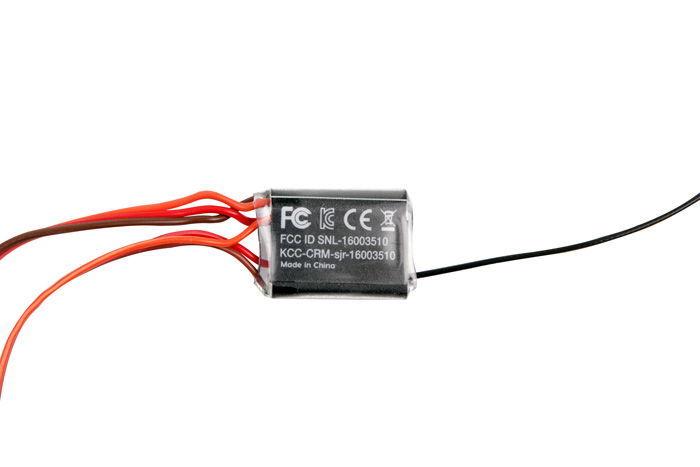

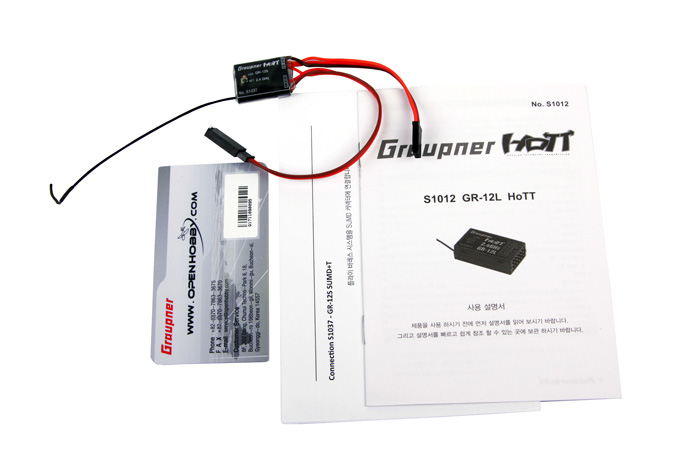

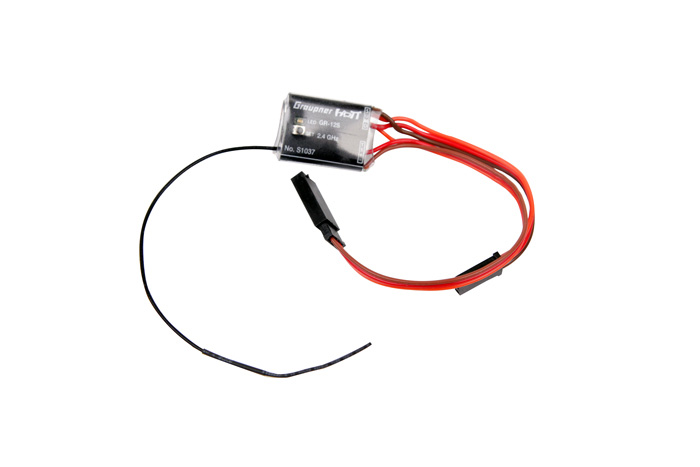

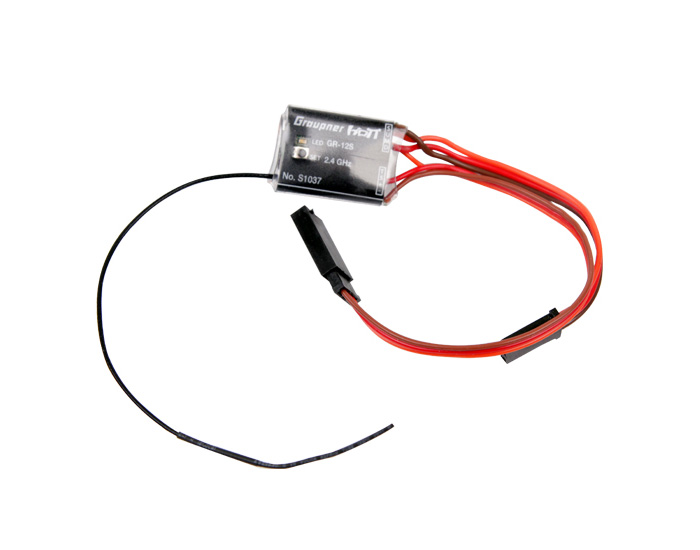

<제품 이미지>
